16F high-head ring-type self-locking with light

Short Description:

·Product Model: Q16F-1.
·Type:Maintained.
·Material:304 stainless steel housing，PA66.
·Protection level: IP67, IK10, IP40.
·Electrical parameters: 5A /250VAC.
·Contact resistance:≤50Ω.
·Insulation resistance:≥1000MΩ.
·Service temperature range:-20℃—55℃.
·Mechanical life:30 times/min，500,000 times.

Send email to us

Product Detail

FAQ

Product Tags

Product Characteristics

1. High head: The head of the connector is high, so that it has better stability and reliability when firmly connected.
2. Ring: The shape of the connector is ring, which is easy to match with other ring connectors and easy to plug and remove.
3. Self-locking: The connector is self-locking, similar to a rotary lock. After inserting the connector, you can rotate it to lock it, which is convenient and stable.

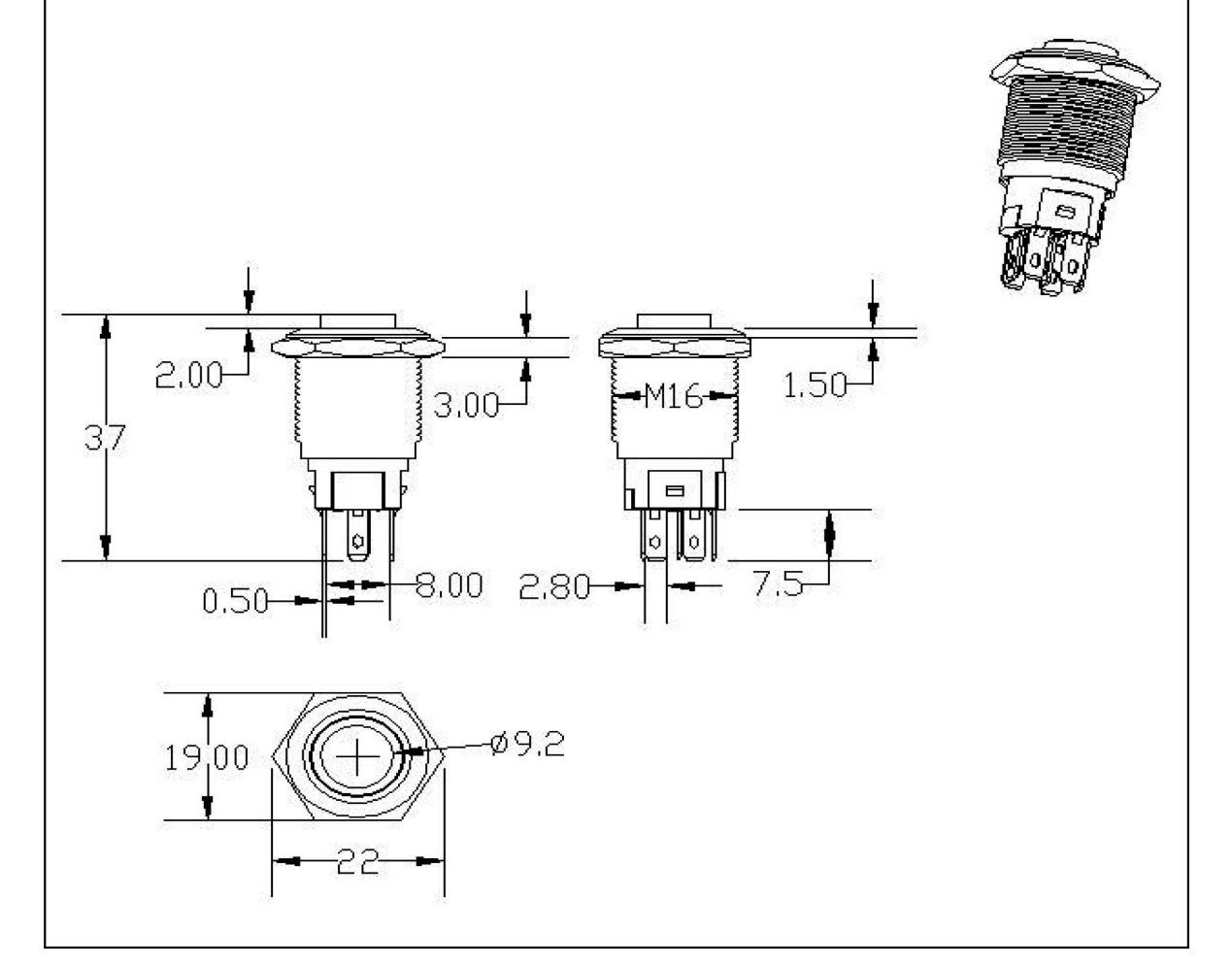

Product Drawing

Application Areas

1. Industrial automation equipment: such as robots, automatic production lines, etc.
2. Aerospace equipment: such as aircraft, satellites and other high-end equipment.
3. Automotive electronic equipment: such as on-board entertainment system, GPS navigation system, etc.
4. Communication equipment: such as base station equipment, optical fiber communication equipment, etc.
